How to Repair a Sagging Fence Gate in Los Angeles

Hello Everybody,

Method will like to share with you this great post by Old House Magazine ,that offers step by step guide to repair your sagging Fence or gate

Follow these steps and a sagging fence gate can be restored to its former swing and snap

: My fence gate is sagging and dragging in the dirt. What should

—Cecile Bolduc, Hampton, N.H.

A: Josh Feeney replies: A gate is only as good as the posts it hangs from and latches to. When gateposts are plumb and rock solid, they will stand up to the swing and slam of each opening and closing. But when they're loose in their holes or are weakened by rot or insects, then hinges turn creaky, the latch won't catch, and the gate can't do its job.

A post that's wobbly but still solid can be fixed quite easily by packing crushed stone around its base with a sledgehammer. But when a post is rotten, as both these gateposts were, it has to be removed and replaced.

I spent 8 hours on this project digging out the old gateposts and putting in new ones, which restored the old gate's youthful firmness and satisfying snap. Follow these steps and you should be able to do the same for your sagging gate.

Josh Feeney is a fence installer with Walpole Woodworkers, which has installed fencing for many TOH TV projects.

Step Two // How to Repair a Sagging Fence Gate

Remove the Hinge Post

Photo by Webb Chappell

Remove the gate and set it aside. Detach the fence section from the hinge post, then dig around the post until it wiggles freely. (If the post is set in concrete, dig around it, then break it into small pieces with a sledgehammer.) To pull out a post , give it bear hug and straighten your knees. Use this old post as a template to mark the locations of the hinges on the new post.

Step Three // How to Repair a Sagging Fence Gate

Set the New Hinge Post

Photo by Webb Chappell

Prop up the unsupported end of the fence section until it's level. Now, fill in or dig out the hinge-post hole until it's 3 feet deep and drop in the new post. Hold it upright in its hole and check that its top is level with the top of the latch post. To make sure that the gate will clear the ground by 2 to 5 inches, hold a level at the height of the lower hinge.

Step Four // How to Repair a Sagging Fence Gate

Attach the Fence Section

Photo by Webb Chappell

Place a level against the side of the hinge post facing the gate opening. When the level indicates that this side is vertical, attach the fence rails to the hinge post with galvanized deck screws. Remove the prop under the fence section.

Tip: A wooden wedge cut from a piece of old fence post makes a useful prop when leveling gates and fence sections.

Step Five // How to Repair a Sagging Fence Gate

Line up All the Posts

Photo by Webb Chappell

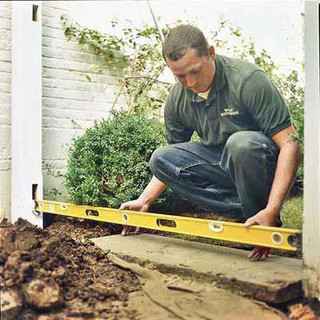

Tack a nail to the far side of the nearest fence post, about a foot above grade, and tie a mason's line to it. Pull the line around the post's corner and several feet past the latch post. Attach it to a stake so that the line touches the latch post. Move the hinge post over until it just touches the line, and make it plumb. A post is plumb when a level shows that two adjacent sides are vertical.

Step Six // How to Repair a Sagging Fence Gate

Strengthen the Footing

Photo by Webb Chappell

Brace the hinge post with two 2x4s: Screw the studs' upper ends into opposite sides of the post 3 feet above grade, and stake the lower ends in the ground about 3 feet from the post base. Mix up two bags of concrete and fill around the post. Stop filling when the concrete is 3 to 4 inches below grade, enough to hide it under topsoil. Let the mix cure overnight.

Step Seven // How to Repair a Sagging Fence Gate

Rehang the Gate

Photo by Webb Chappell

If the latch post rotted, as this one did, replace it following steps 1 though 4; you won't need concrete. Set the post in a 3-foot-deep hole on 2 inches of tamped gravel, check that its top is even with the hinge post's, then fill the hole with firmly compacted gravel and soil. Reattach the gate, making sure its top rail is level and that it clears the ground by 2 to 5 inches. Close the gate and attach the latch where its bolt hits the latch post.
